ASRock Challenger D Radeon RX 5600 XT OC Graphics Card, 6GB (14Gbps) 192-Bit GDDR6 PCIe 4.0 x16 AMD Eyefinity Technology…

Description

Graphics Engine
– AMD Radeon RX 5600 XT

Bus Standard
– PCI Express x16 Gen4

DirectX
– 12

OpenGL
– 4.6

Memory
– GDDR6 6GB

Engine Clock
– Boost Clock: Up to 1750 MHz
– Game Clock: 1615 MHz
– Base Clock: 1420 MHz
*Need to update L07 version VBIOS or later

Stream Processors
– 2304

Memory Clock
– 14 Gbps
*Need to update L08 version VBIOS or later

Memory Bus
– 192-bit

Resolution
– Digital Max Resolution: 8K HDR 60Hz

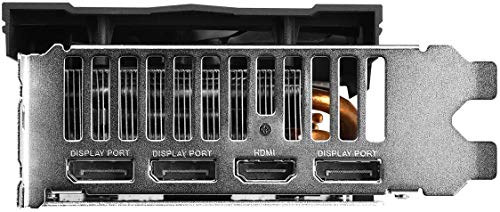

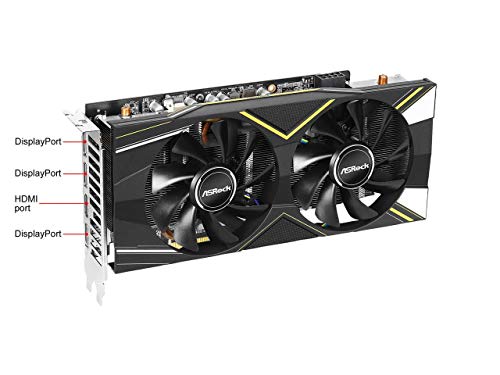

Interface
– 1 x HDMI 2.0b
– 3 x DisplayPort 1.4 with DSC 1.2a

HDCP
– Yes

Multi-view
– 4

Recommended PSU
– 550W

Power Connector
– 1 x 8-pin

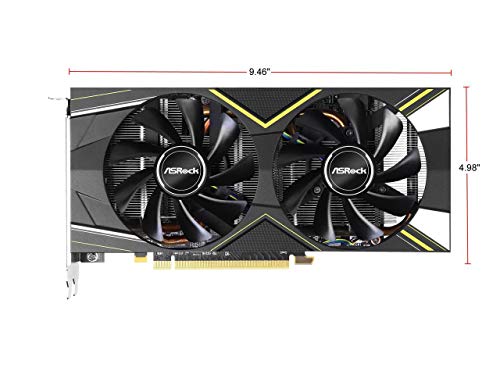

Dimensions
– 240.5 x 126.5 x 53 mm

Make sure this fitsby entering your model number.
【The AMD Radeon RX 5600 XT Graphics Card】 is designed for the ultimate 1080p gaming experience. Turn up your settings for higher fidelity and boost gaming performance for higher frame rates with ultra-fast response times. Get the power of the highly acclaimed RDNA architecture, the heart of AMD’s advanced 7nm technology process, as well as GDDR6 high-speed memory and PCI Express 4.0 support, delivering a highly responsive, ultimate 1080p gaming experience.

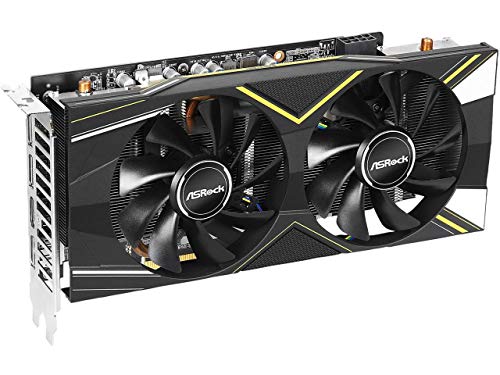

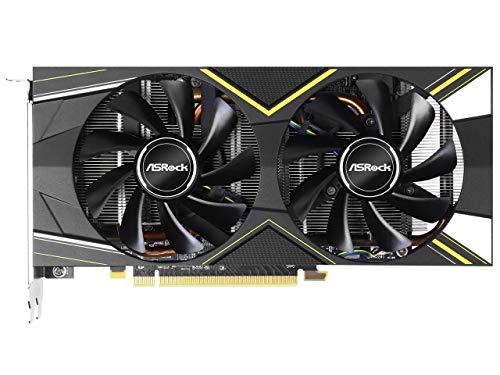

【Dual Fan Design】Two fans that provide strong cooling performance and make your gaming rig stay cool. It’s optimized for delivering excellent gaming experience with stylish and streamlined design.
【AMD Eyefinity Technology】expands the traditional limits of desktop computing by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.
【Radeon FreeSync 2 HDR】Get ready to experience smooth brilliant HDR gaming. Enjoy vibrant HDR content while eliminating image tears and choppiness for effortlessly smooth gameplay. Low Frame-Rate Compensation, Low Latency, Plug and Play and HDR Ready. That’s Radeon FreeSync 2 HDR.
【Stylish Metal Backplate】With the Phantom Gaming look, the stylish metal backplate on the Phantom Gaming graphics cards makes it more fancy in visual and solid in construction. Otherwise, the thermal pad at the backside also helps to enhance the thermal efficiency.
